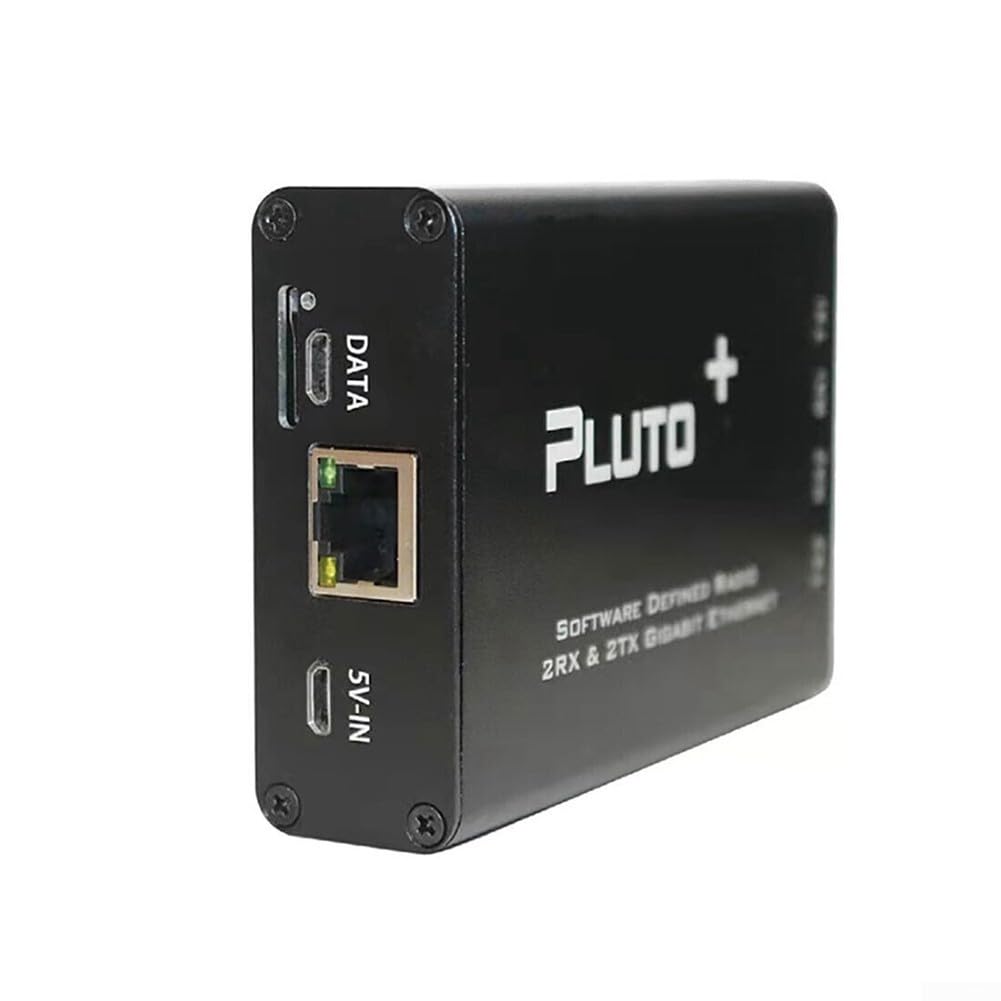

YUANGANG Software Defined Radio (SDR) Transceiver - 70MHz to 6GHz Wide Frequency Range with Capture & Replay Function, SD Card Compatible for Ham Radio, Wireless Communication & Signal Analysis - Perfect for Amateur Radio Operators, Engineers and Tech Enthusiasts

Save 45%

YUANGANG Software Defined Radio (SDR) Transceiver - 70MHz to 6GHz Wide Frequency Range with Capture & Replay Function, SD Card Compatible for Ham Radio, Wireless Communication & Signal Analysis - Perfect for Amateur Radio Operators, Engineers and Tech Enthusiasts

Sku: 63646823 in stock

$188.36

$342.48

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

27 people viewing this product right now!

Guranteed safe checkout

Description

Features:* transceiver radio software defined specifically for Gigabit Ethernet SD cards* is a software-defined radio platform that supports 2TX and 2RX, supports Gigabit Ethernet and SD card. It refers to the design of the famous ADI ADALM and improves its shortcomings.Specification:ADC/DAC: AD9363 (can be cracked to AD9361 or AD9364)2 transmit channels, 2 receive channelsRadio frequency range: 70MHZ~6GHZReference clock: VCTCXO 40MHZ 0.5ppmSOC: For Zynq7010 FPGA: 28kMemory: 512MFlash memory: 32MUSB: 2.0, support OTGEthernet: 1000MbSD can be used to bootDC input: 5V±0.5V-2A USBinterface:Note that all IO levels are 1.8V.3.1 When using ADI official firmware, please connect URST-MI052.3.2 When using firmware, you need to support Ethernet, please connect URST-MIO463.3 When booting with SD card, please connect SD-H to 1V83.4 When using JTAG debugging, please connect JTAG# to ground3.5 When using external reference clock input, please connect EXCLK to GNDPTT key port:PTT drives the optocoupler through GPIO0 (MI00) and requires an external relay or control circuit.DFU key:At any time, you can press the DFU button and power up the again to enter DFU mode, but you will need to connect the URST for jumper to MI052.Refer to CLK input IPEX:You can input an external high-precision reference clock to the AD9363 through the IPEX interface connection cable.The main level should not exceed 3.3V. You need to connect the EXCLK for jumper to GND to turn off the built-in clock.Calibrate the frequency of the built-in VCTCXO:The frequency of the 40M clock can be fine-tuned by adjusting the adjustable resistor next to the VCTCXO, provided you have a reference signal source.To support SD card booting, you need to connect the SD-H for jumper to 1V8.

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

【Wide Frequency Range】The transceiver radio covers a broad frequency range of 70MHz to 6GHz, allowing for usage across different radio bands and applications.

【Software-Defined】 utilizes software-defined radio technology, providing flexibility and adaptability for various signal processing and modulation techniques.

【Enhanced Design】Based on the renowned ADI ADALM improves upon its design and addresses previous limitations, making it a robust and reliable transceiver option.

【Multi-Functional Features】Equipped with 2 transmit channels and 2 receive channels supports Ethernet and SD card, expanding connectivity options and storage capabilities.
