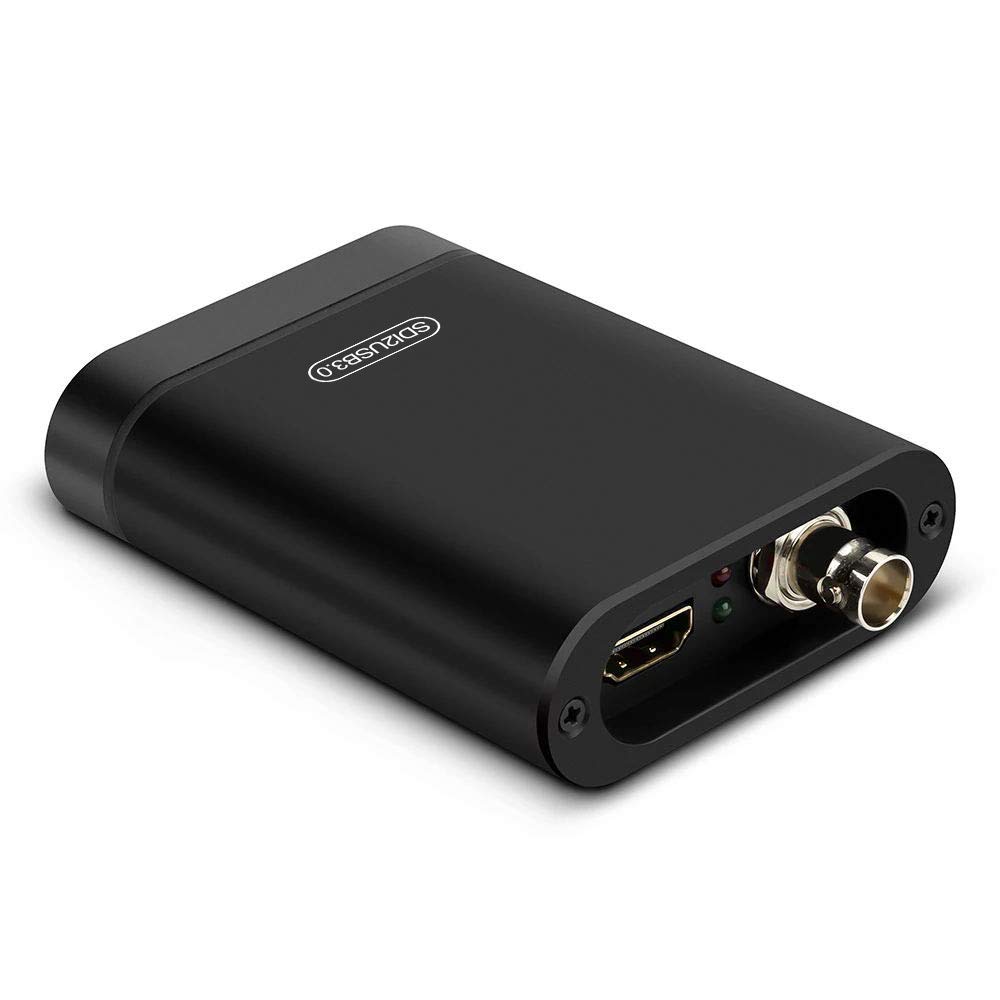

Avmatrix UC2018 HDMI and SDI to USB3.0 Video Capture Box Features Supports SDI/ HDMI capture to USB 3.0 Automatically detect the input video formats Compatible with USB3.0 with transmission rate up to 300~350MB/s Compatible with UVC video capture and YUV 4:2:2 video output Input and output video signal up to 1080p60 Compatible with Windows, Linux, Mac OS X and with many different USB 3.0 chipsets Compatibles VLC, OBS, XSPLIT and AMCAP etc. PC capture software Connect multiple dongles to one machine USB power supply Specifications INTERFACE Input interface : 1xSDI, 1xHDMI 1.4a Output interface : 1xUSB3.0 (compatiable USB2.0),1xHDMI local loop out Audio input format : HDMI/SDI embedded audioInput format FORMATS Input format : HDMI 1.4a compliance, Support 1080P/60hz 8-bit,(RGB,YUV) SD/HD/3G-SDI, SMPTE-259/274/296/372/424/425/292 compliance HDMI sampling rate : 165MHz USB3.0 output format : 1920x1080, 1920x960, 1680x1050, 1280x720, 1024x768, 960x540, 720x576, 720x540, 720x480, 640x480, 640x360 Frame rate : 25/29.97/30/50/59.94/60fps Audio input format : 1xPCM stereo audio Video & audio capture : UVC (USB video class) & UAC (USB audio class) standard Output color space : YUY2 SOFTWARE Supported OS : Windows 7/8/10, Linux (Kernel version 2.6.38 and above), OS X (10.8 and above) Software compatibility : OBS (Windows), Windows Media Encoder (Windows), Adobe Flash Media, Live Encoder (Windows, OS X), VLC (Windows, OS X, Linux), QuickTime, Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X), Potplayer (Windows), etc. Compatible SDK : DirectShow (Windows), DirectSound (Windows) GENERAL Power consumption : 3W Operating temperature : 0~50oC Storage temperature : 0~60oC Relative humidity : 20~90% RH (no condensation) Dimensions : 99.6x70x24 Weight : 114g
